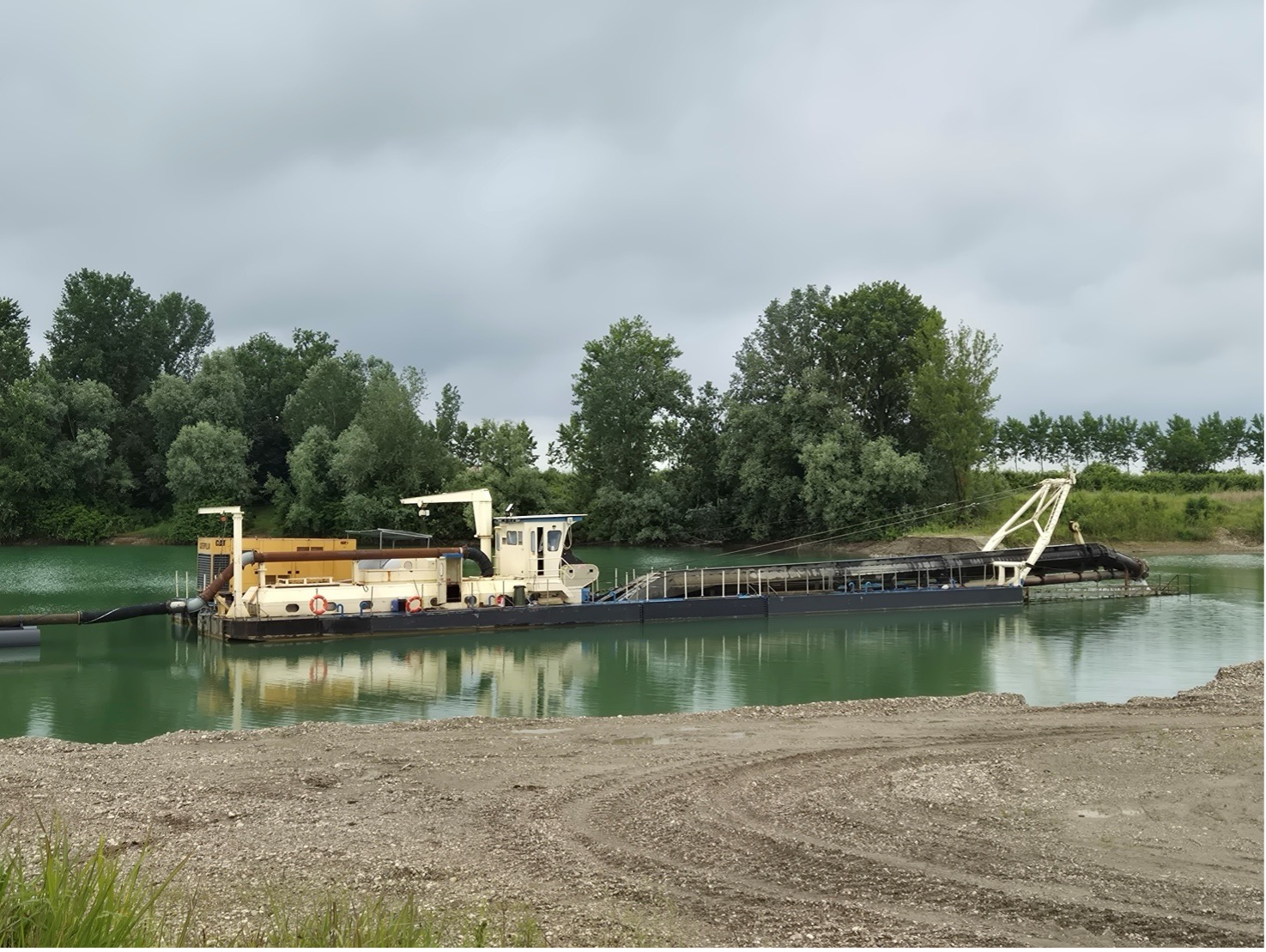

Cutter Suction Dredge ID400/350 EDOF

Cutter Suction Dredge ID400/350 EDOF

TECHNICAL SPECIFICATION
CUTTER SUCTION DREDGE ID400/350 EDOF SECOND HAND

Hull Dimension:
Pontoon lenght: m. ap. 52,00
Overall width: m. ap. 6,00
Overall length: m. ap. 40,96
Depth mid: m. ap. 1,55
Draught: m. ap. 0.90
Performance:
Max dredging depth: m. 30
Max delivery distance in fine sand: m. ab. 2.000
Diameter of the suction pipe: mm. 400
Diameter of the delivery pipe: mm. 350
Total installed Power about: Kw. 650
Power at shaft of the pump Kw. 540
Power at the cutter Kw. 70
Max mixture delivery: mc/h 2200
Solid production: ab. 20%
